#187 Air Control Kit (510 Series)

$ 63.19

Product Number: 187

ANY PRODUCT AVAILABLE FOR BACK-ORDER IS A PRODUCT WE INTEND TO CARRY MOVING FORWARD BUT ARE CURRENTLY OUT OF STOCK. YOU CAN PLACE BACK-ORDERS FOR THESE ITEMS. THIS LIST MAY BE ADJUSTED AS WE MOVE FORWARD.

510 Series Air-Up / Spring-Down Air Control Kit (set)

This is a complete air-control kit for use with any pneumatic-operated retracts air up & spring down.

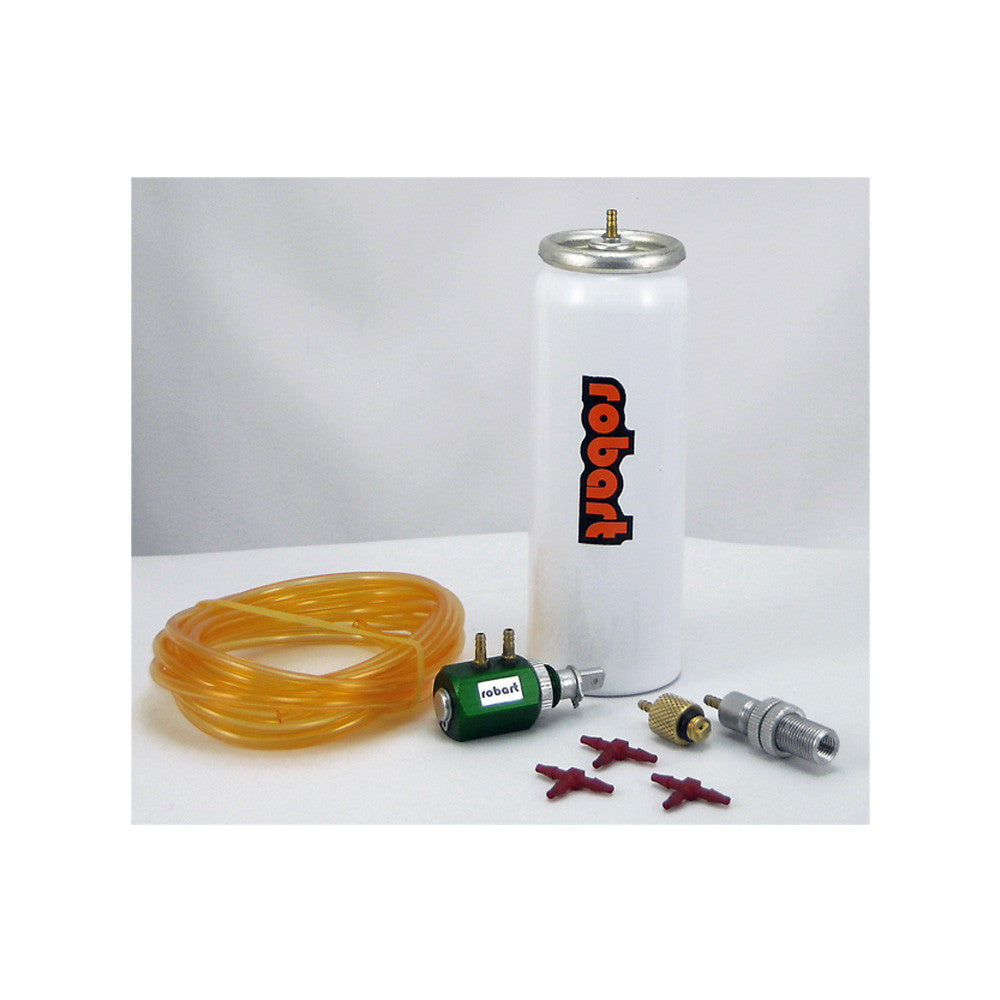

The kit includes: x-small air tank, 6 ft. orange air line, fittings, one way control valve, fill valve, and fill fitting.
The operating valve requires approximate 1/4" of push rod travel and functions with standard or mini servos.
(Servo & Push Rod Not Included)

Max Operating Pressure 110 psi.

Instructions

Troubleshooting Air Leaks Guide
