#150HD9E Heavy Duty Rotating Electric Retracts 90 deg. 9" Struts

$ 629.95

Product Number: 150HD9E

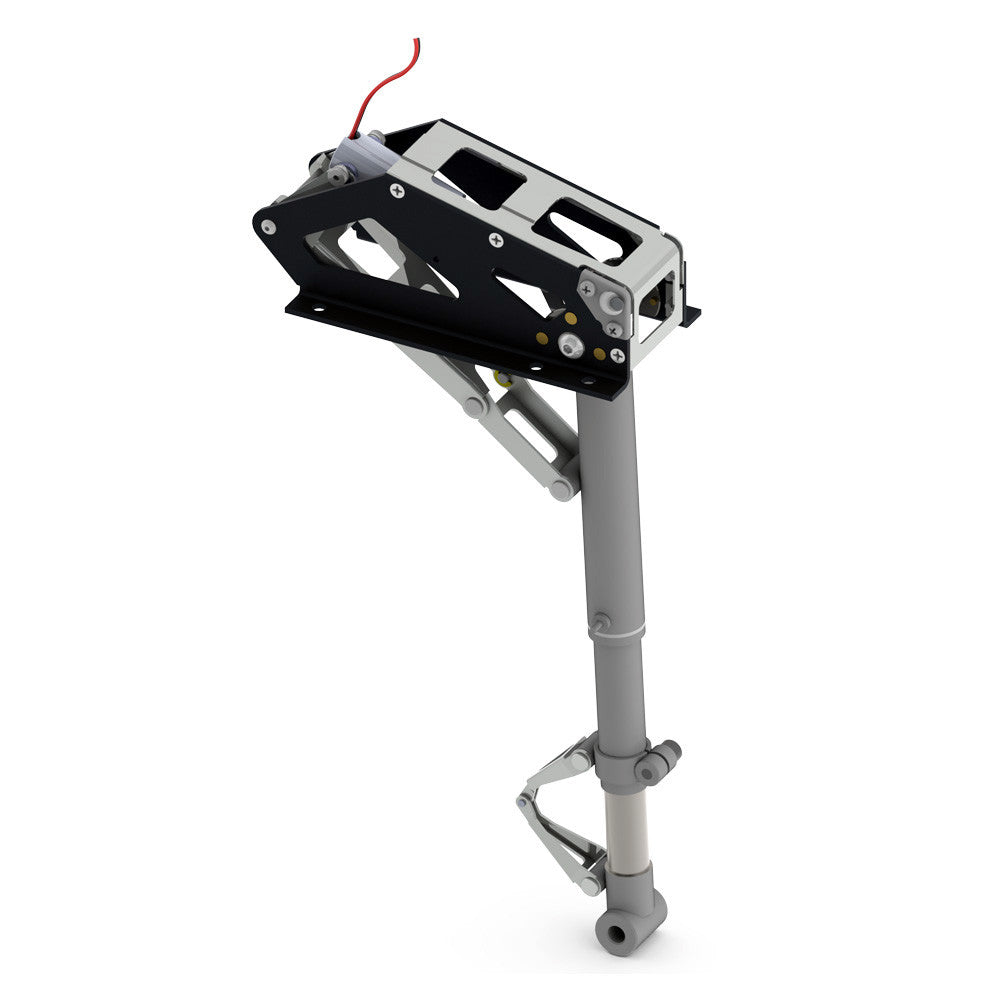

100 degree Electric Heavy Duty Rotating Retract with 9" Strut. (pair)

These were designed to handle aircraft up to 50 lbs. These retracts feature heavy duty side frames with steel bearings, and 5/8” diameter struts.

These electric operated retracts are constructed from aircraft steel and aluminum components. They feature functional 4130 chrome moly steel oleo struts, electric actuator and 1/4 inch axles. The struts rotate 90° when retracted making these retracts ideal for use in 1/5 scale models of F4U Corsair, P-40 Warhawk, F6F Hellcat and AD-1 Skyraider.

(Includes Robart Electric Control Unit)

Electric Retract Instructions

Dimension Drawing

Spare Parts List
