#643RSE 90 deg Electric Nose Firewall/Belly Mount Robostrut Ready

$ 146.95

Product Number: 643RSE

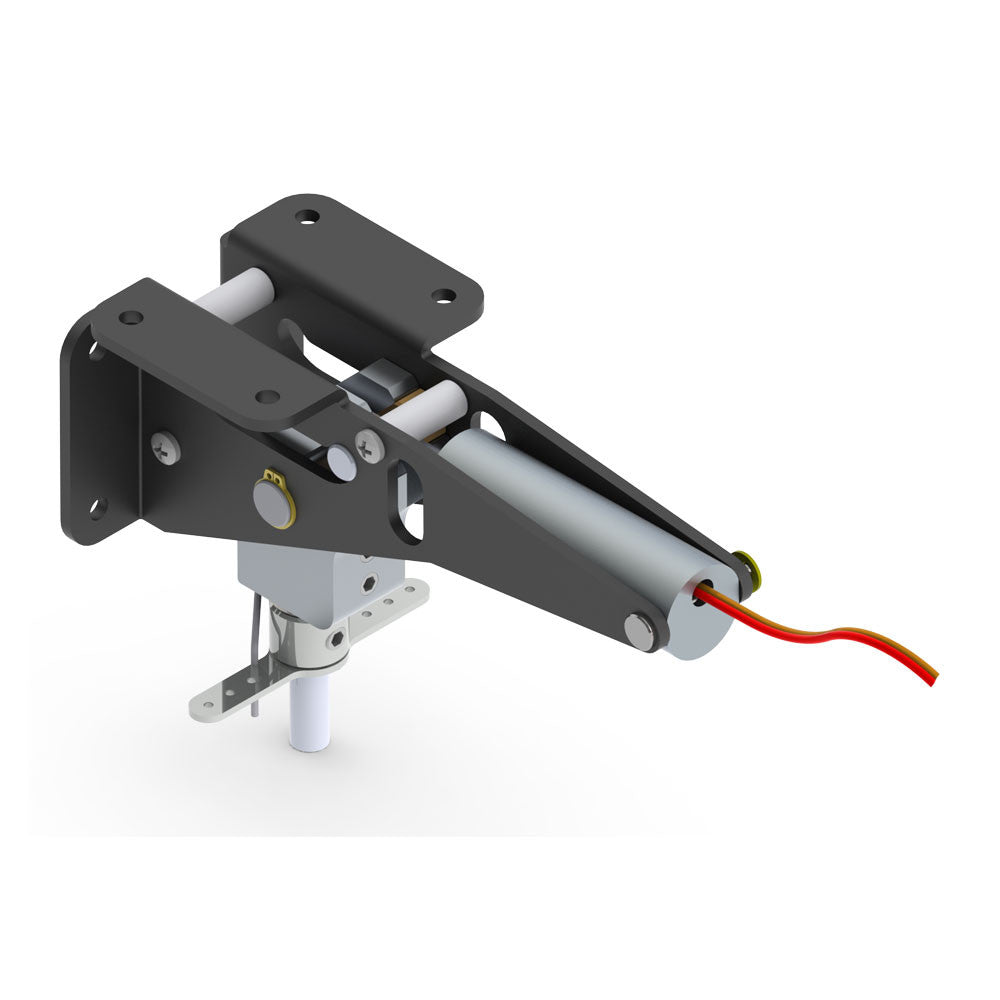

90 degree Electric RoboStrut Ready Belly/Firewall Mount Nose Retract Mechanism Only (each)

These series of electric retracts are designed for R/C aircraft weighing up to 24 lbs.. Constructed with heat treated aluminum alloy frames and trunions. They offer long dependable service for large aircraft flying off grass or paved runways. Powered by a electric actuator, all of these units feature positive up and down locks. The Nose Gear units are steerable with an steering arm, 1/4" pin to attach a strut and are for use with any 7/16” or 1/2” diameter RoboStruts.

(Robart Electric Control Unit is required to operate)

Electric Retract Instructions

Dimension Drawing

Spare Parts LIst
